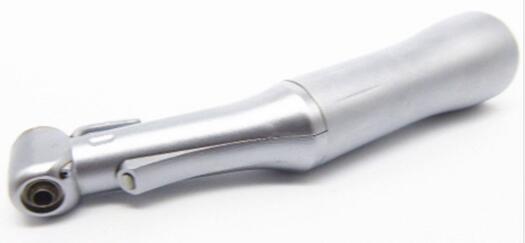

Dental Handpiece SG20 Classical dental implant Reduction speed 20:1 contra angle
Instruction of dental handpiece:
After each treatment,Sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur and brush clean handpiece, clean outside of handpiece with an alcohol solution.
2. Lubricate handpiece, each times drop two drops inside of air inlet pipe.
3. Place into autoclaving pouch and mark.
4. Autoclave the handpiece for 12 min. at 135℃.
- Please do not use the acid solution to scrub, inject or soak the handpiece.
Please do not autoclave the handpiece with residual chemical substances.
Handpiece should be packed well and place at clean and dry room without dust, sulfur and salt.
Please do not touch the handpiece immediately after autoclaving.
1. Chuck Type: Push Button type chuck
2. Bur Applicable:2.345-2.355mm
3. Spray:external irrigation system
5. Provides sufficient force at low speed
6. Ergonomic comfort grip
7. 20:1 gear ratio
8. Available for various E-type motors in accordance with ISO standard
9. Compatible with all e-type motors(NSK, Aseptico,W&H,Nouvag Acteon)Implant Handpieces ISO E-Type
| Name | Dental 20:1 implant contra angle |
| Air pressure | 0.22-0.25Mpa |
| Connection | Implant micromotor |
| Spray | External water |
| Ratio | Increasing |
| Size of head | Standard |
| Bearings | Imported bearings |
| Chuck type | Push botton |
| Feature | For dental implant surgical use |
| Warranty | 6 month warranty |
| Model | Photo | Feature |

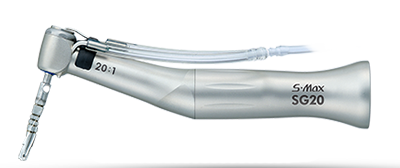

| SG20 |  | *20:1 Reduction *External and internal cooling (Kirschner and Meyer) |
| SG20L |  | *20:1 Reduction *External and internal cooling (Kirschner and Meyer) *with Glass Optics light |

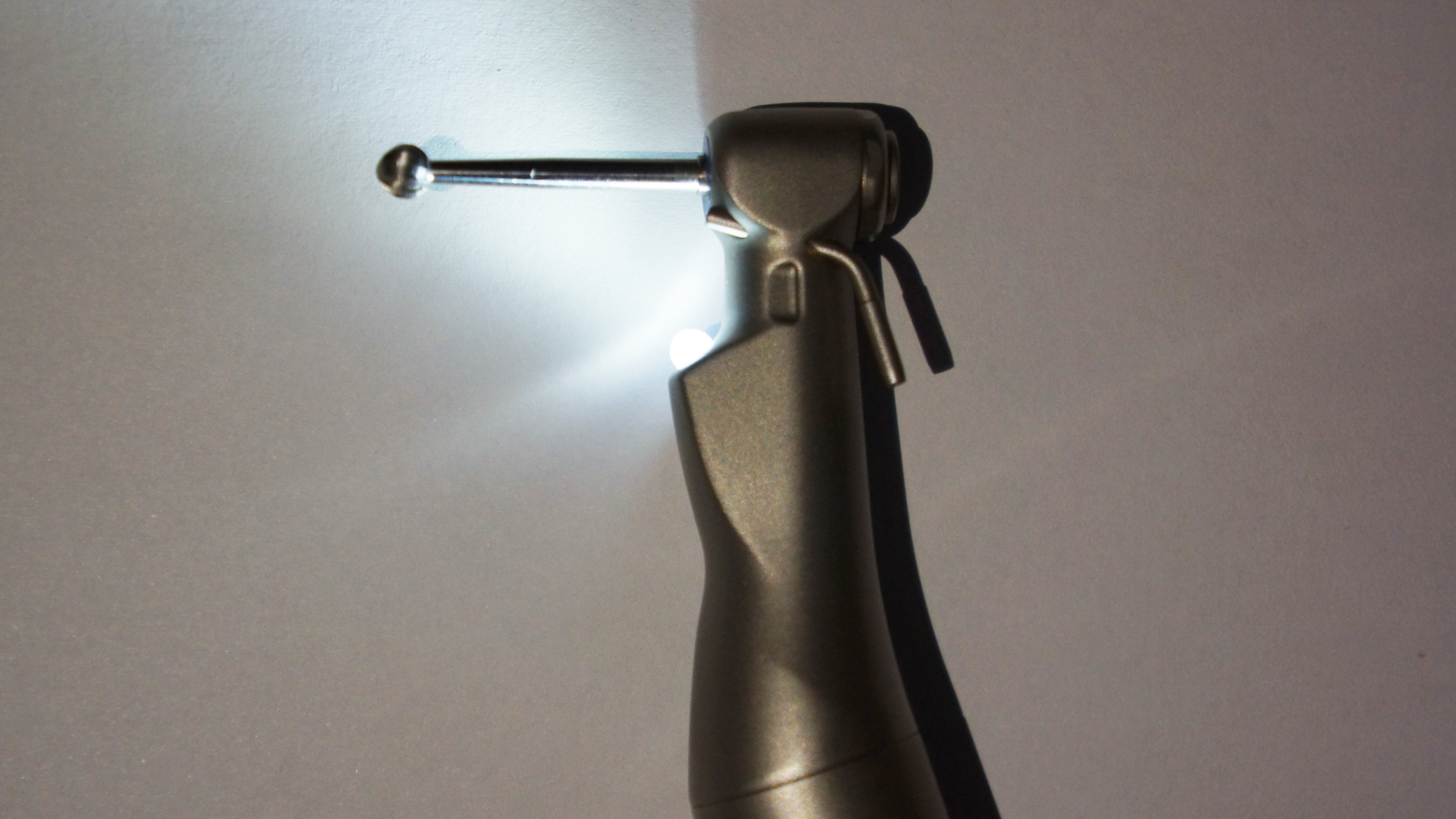

| SG20 LED |  | *20:1 Reduction *External and internal cooling (Kirschner and Meyer) *with LED light |
